Product > USB 3.2 / 3.0 / 2.0 > USB to RS-232 Adapter

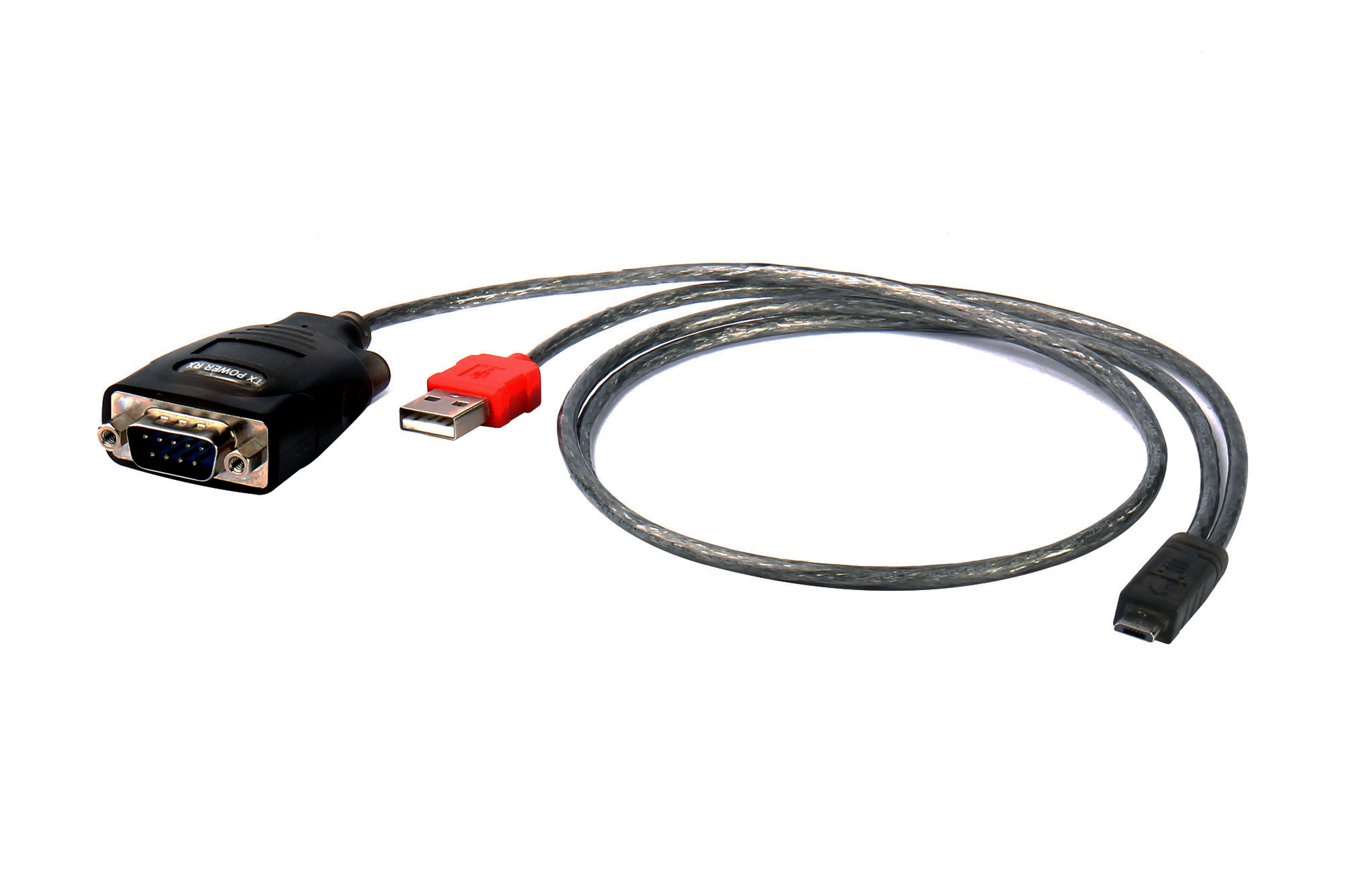

USB to RS-232 Adapter for Android

USB to RS-232 Adapter for Android

UTS-232AD

The USB to serial adapter enables you to connect a RS-232 device to a smart phone or tablet with Android OS. Designed for mobility and integration into mixed environments such as Controlling instrumentation, Home automation, barcode scanning etc.; this portable and lightweight single cable solution is compatible with nearly all Android OS version 3.2 Honeycomb or later devices including the Samsung Galaxy Note®, Galaxy® S5, S4, S3, or S2, Google Nexus 7™, 5, or 4, and Motorola or HTC mobile devices.

Exception: serial mouse, or serial modem is not for application.
  •  Feature
  •  Specification
  •  Download
  • Fully Compliant with USB specification 1.1 and 2.0
  • USB to Straight-Through RS-232 DB9 Serial Adapter for Android
  • Supports data transfer rate up to 230 Kbps; or up to 115Kbps with no flow control
  • Standard UART interface (RX, TX, RTS, CTS and GND pins)
  • UART TX buffer size is 256 bytes, UART RX buffer size is 5512 bytes
  • Supports ±15kV HBM ESD Protection
  • Supports OTG (On-The-Go) mode but no external OTG cable is required
  • Powers and charges the connected Android device, USB-powered via PC USB port, USB wall charger, or USB mobile battery pack
  • Compatible with Android OS Version 3.2 Honeycomb or later (Suitable for use on any Android platform supporting Android open Accessory Mode)
