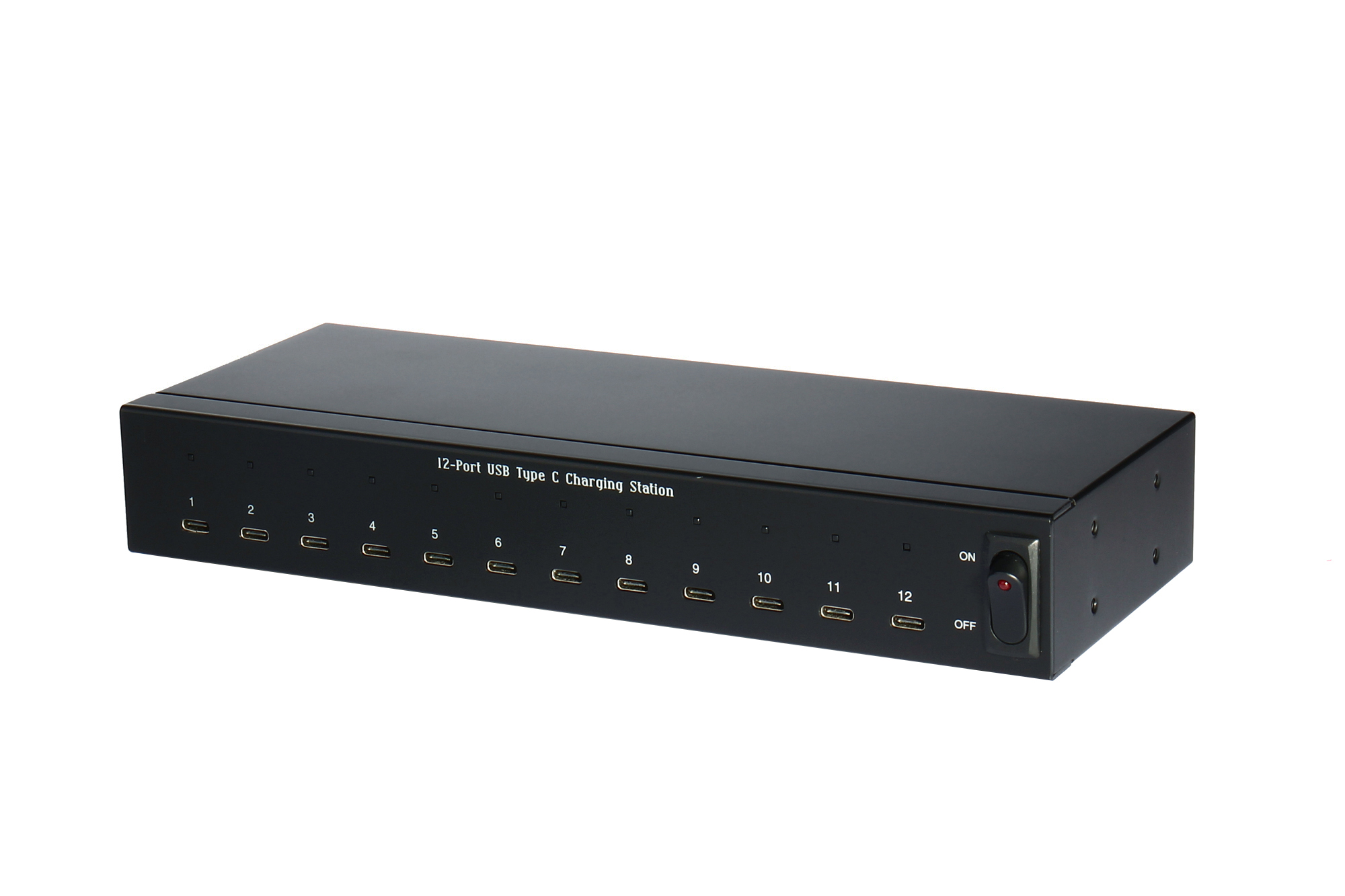

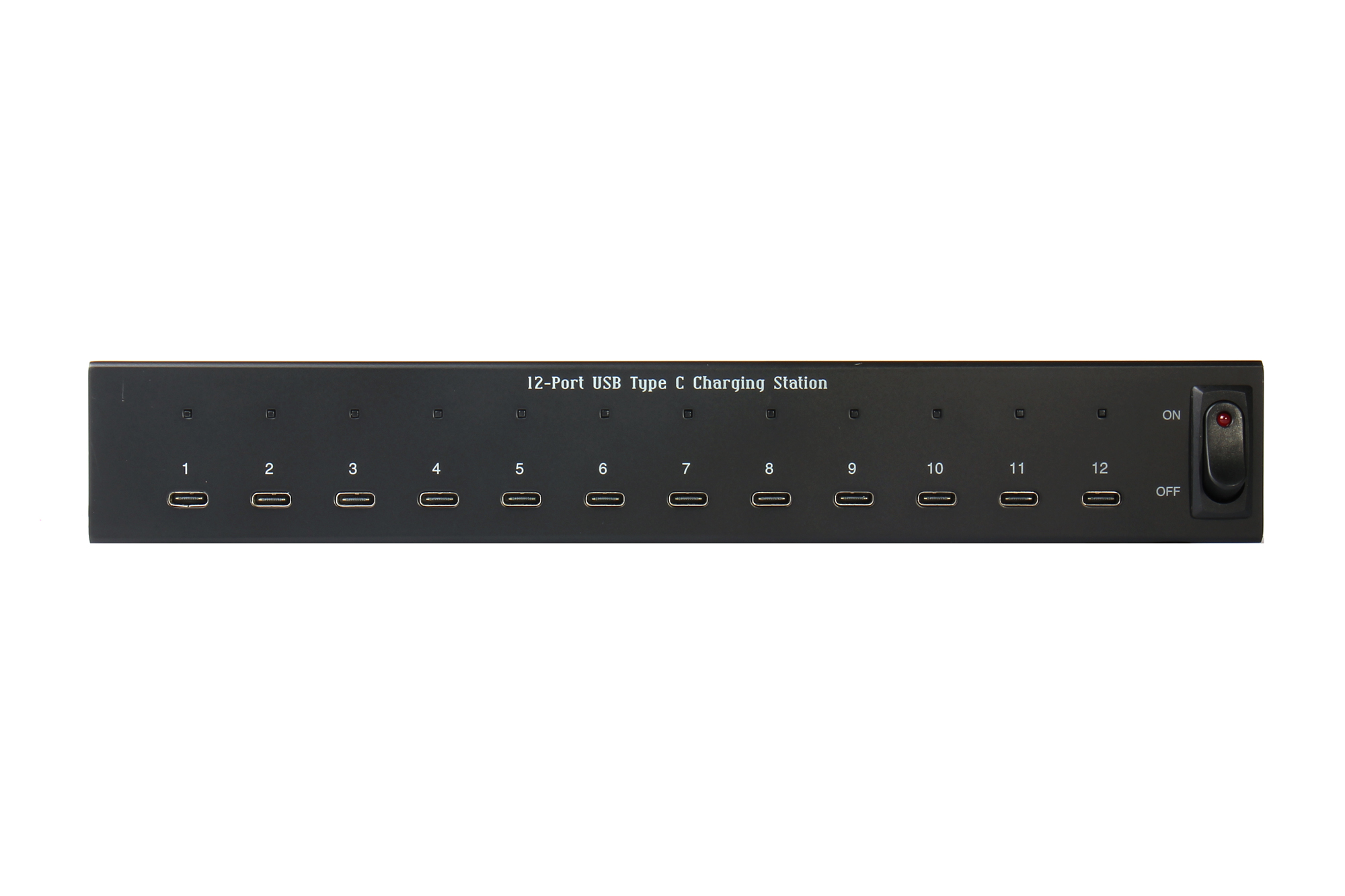

USB 2.0 12-Port Type C Hi-Power Charging Station
USB 2.0 12-Port Type C Hi-Power Charging Station
USB-CH12TC
A solution for quick charging up to 12 USB Type C devices. This is a perfect tool to effectively save energy and cool down the unit’s heat. Also is ideal for large capacity USB station in-house that enables charging at a time; automatically recharging once the devices connected have consumed their power with remaining 90% (approximately) after fully charged. Places such as school’s classroom, businesses conference or meeting in organizations.
Feature
Specification
Download
- Supports Downstream Facing Port (DFP)
- Compliant with USB Spec. 2.0 / USB Type C Spec 1.2 & USB Battery Charging Spec 1.2
- Enables to provide up to 5V 3A output current on each port; Supports iOS, Android devices
- Enables Green Energy function (ECO Mode) automatically shutdown the hub when all devices are fully charged at Charge mode
- Supports Over-Current Protection & Short Circuit Protection on each port
- For the Over Temperature Protection, it would cut off all the output current immediately and the whole 12 ports LED would be green blinking
- Supports ±15kV (air), ±8kV (contact) ESD protection on each port

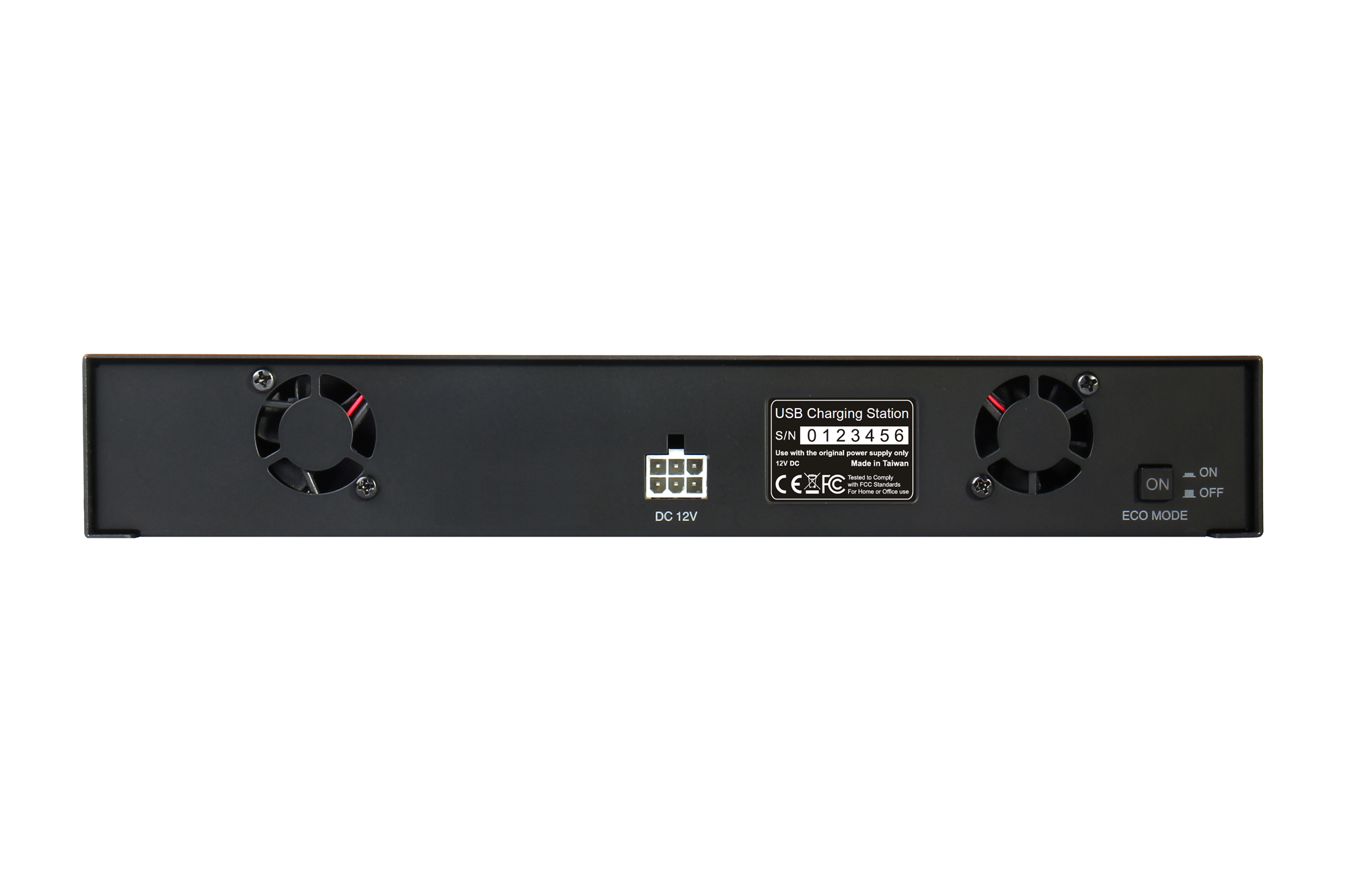

- The rear fans spec: SUNON Vapo DC Fan; Life Expectancy: 60,000 hours
- Supports 40A (5/50ns) & Peak Pulse Power 60W (8/20 us) Surge and Transient spikes protection on each port
- Enables to start/cut off the fans automatically according to the temperature’s setup
