USB to RS-232 Extender

USB to RS-232 Extender

UTS-101E

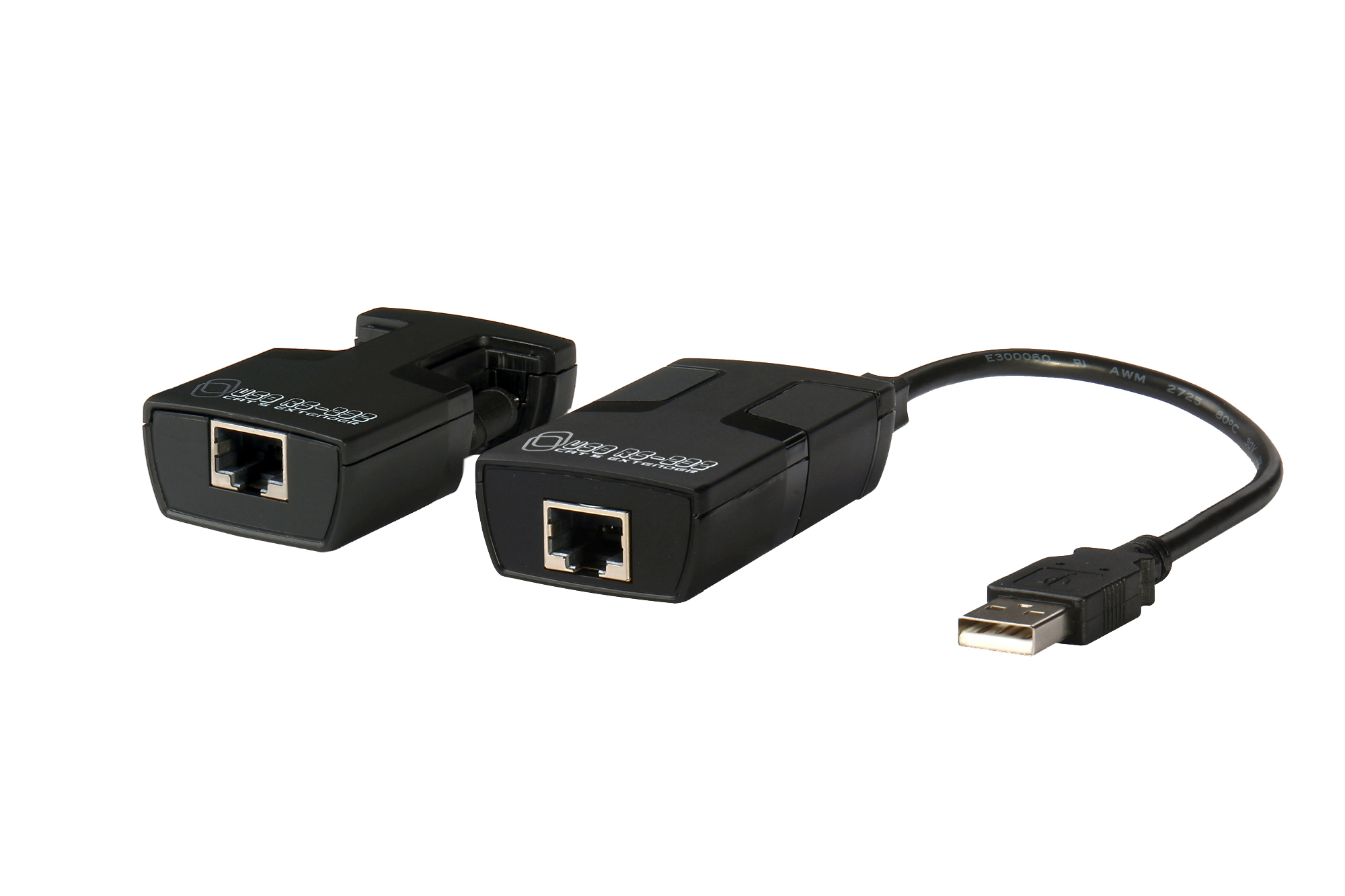

A low cost hardware solution that will extend your RS-232 (serial / DB-9) using a single standard CAT5/CAT5e/CAT6 UTP cable. It provides full-duplex remote access and control of any RS-232 protocol device. The USB to RS-232 CAT5 extender kit consists of a local transmitter and remote receiver. It provides you with a tremendous amount of flexibility in your installation. You can place RS-232 devices in any location you want and control them remotely up to 90M (270 feet).
  •  Feature
  •  Specification
  •  Download
  • Compatible with all RS-232 protocols
  • Extends RS-232 peripherals up to 90M
  • Fully Compliant with USB specification 1.1 and 2.0
  • Supports transfer rate up to 230kbps
  • Supports ±15kV HBM ESD protection
  • Bus-powered - no external power supply required for local or remote unit
