Product > USB 3.0 / 2.0 > USB 20/12-Port Type C Hi-Power Charging Hub/Station

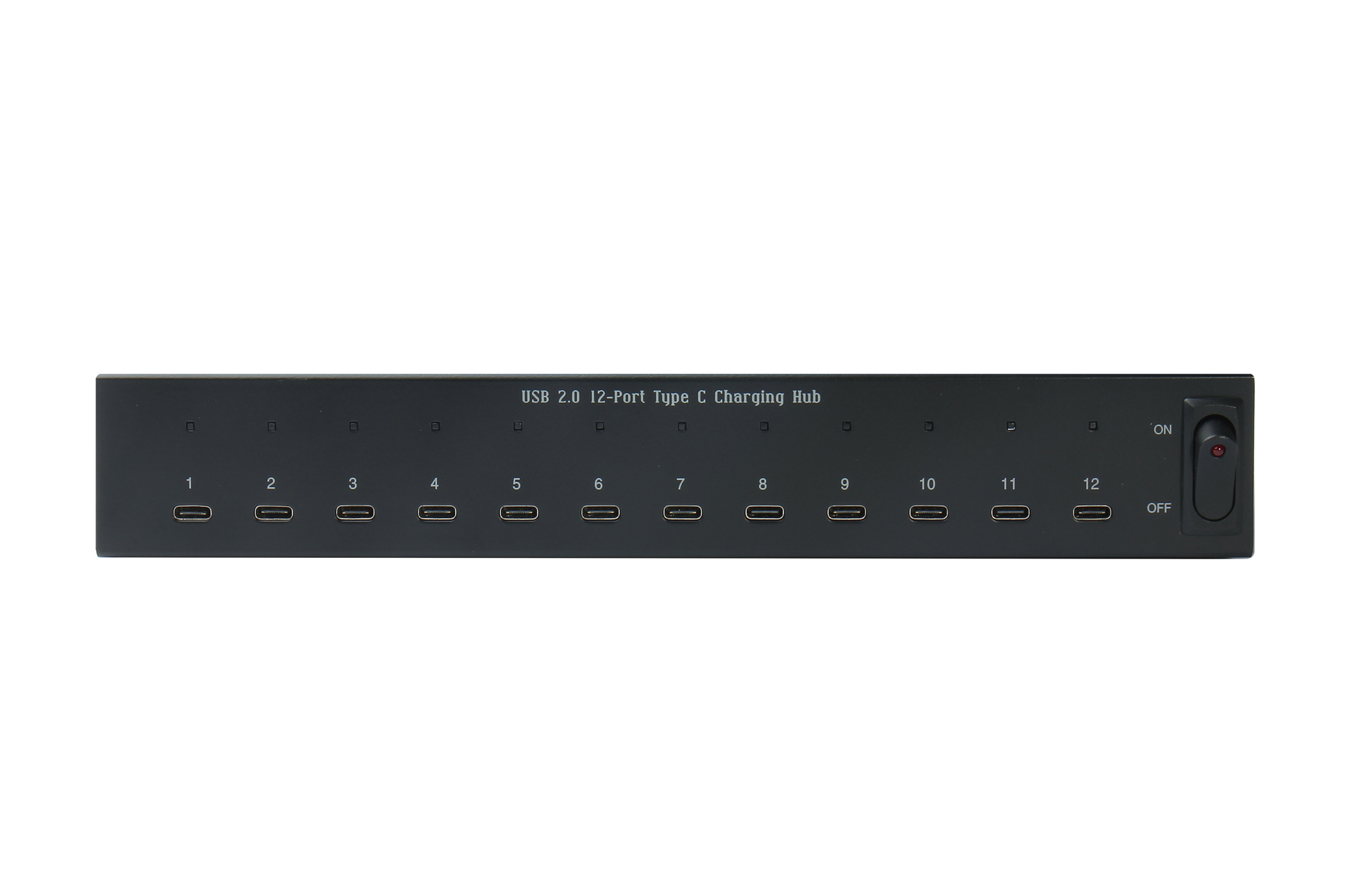

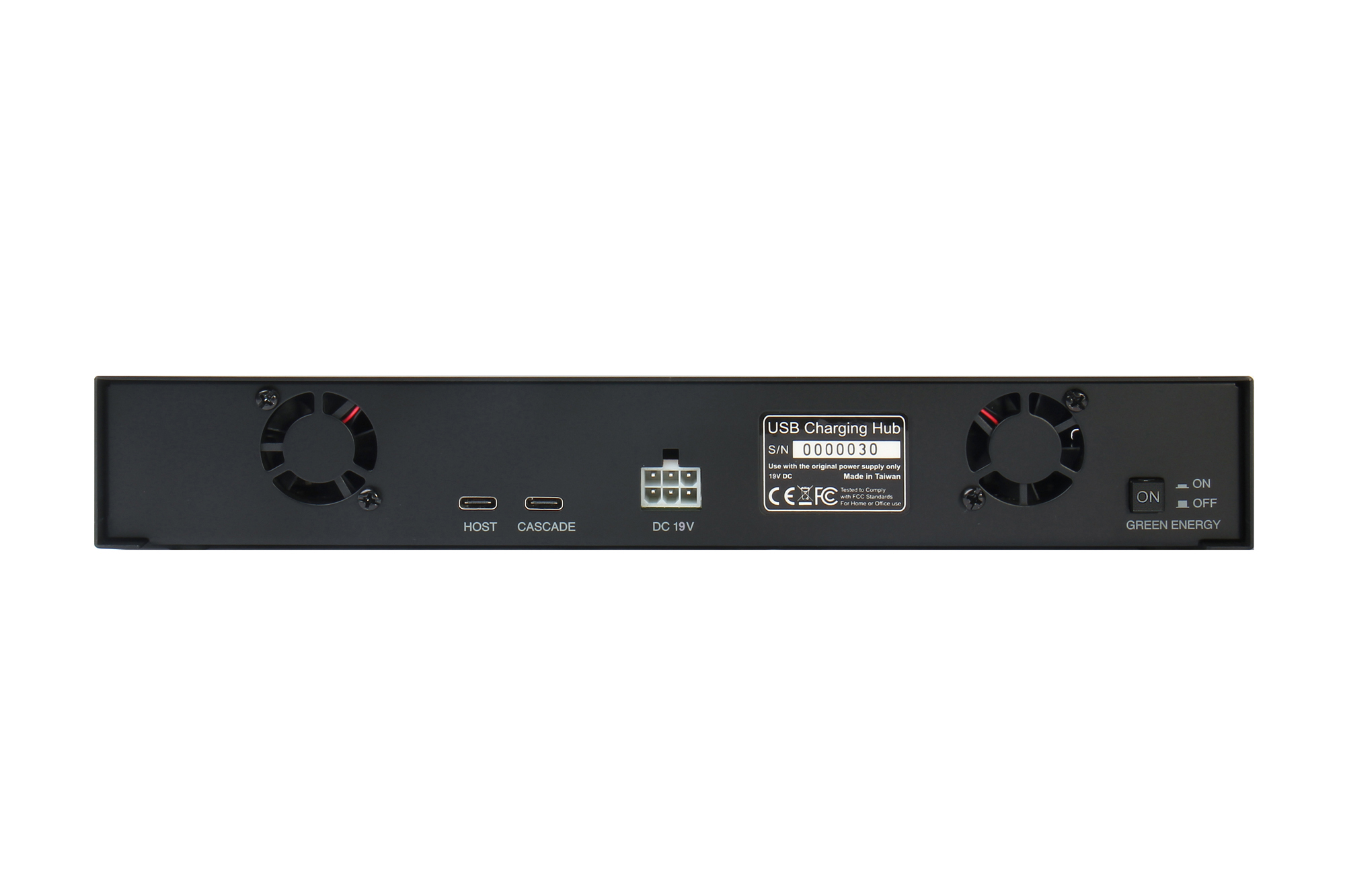

USB 2.0 12-Port Type C Hi-Power Charging Hub

USB 2.0 12-Port Type C Hi-Power Charging Hub

USB-2012TC

A solution for quick charging or sync up to 12 USB Type C devices. This is a perfect tool to effectively save energy and cool down the unit’s heat. Also is ideal for large capacity USB station in-house that enables charging and syncing at a time; automatically recharging once the devices connected have consumed their power with remaining 90% (approximately) after fully charged. Places such as school’s classroom, businesses conference or meeting in organizations.
  •  Feature
  •  Specification
  •  Download
  • Supports Downstream Facing Port (DFP)
  • Compliant with USB Spec. 2.0 / USB Type C Spec 1.2 & USB Battery Charging Spec 1.2
  • Enables to provide up to 5V 3A output current on each port; Supports iOS, Android devices
  • Extends up to optimum 48 USB Type C devices by connecting cascade port with another 3 units
  • Enables Sync/Charge mode switching upon manually connecting or disconnecting host port
  • Enables Green Energy function (ECO Mode) automatically shutdown the hub when all devices are fully charged at Charge mode
  • Supports Over-Current Protection & Short Circuit Protection on each port
  • The rear fans spec: SUNON Vapo DC Fan; Life Expectancy: 60,000 hours
  • Supports ±15kV (air), ±8kV (contact) ESD protection on each port
  • Supports 40A (5/50ns) & Peak Pulse Power 45W (8/20 us) Surge and Transient spikes protection on each port
