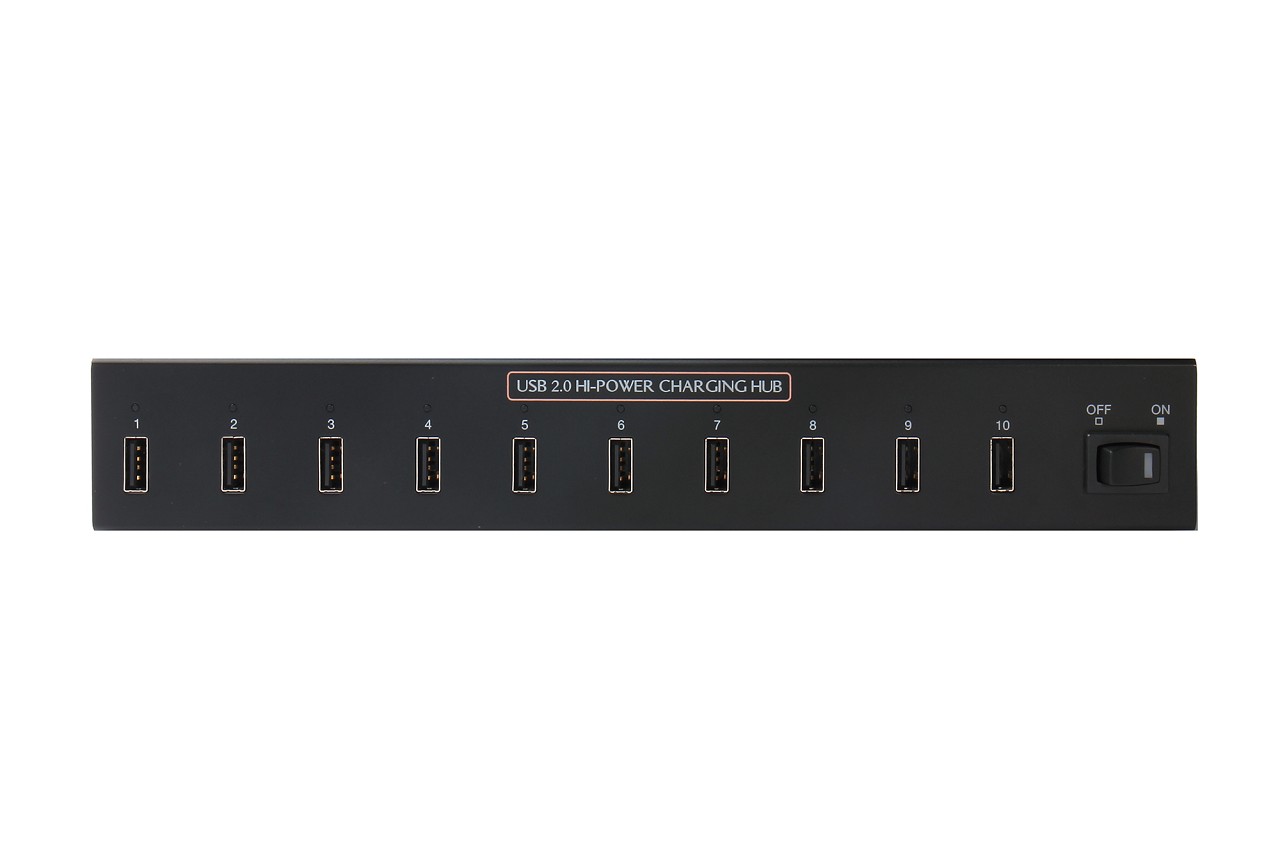

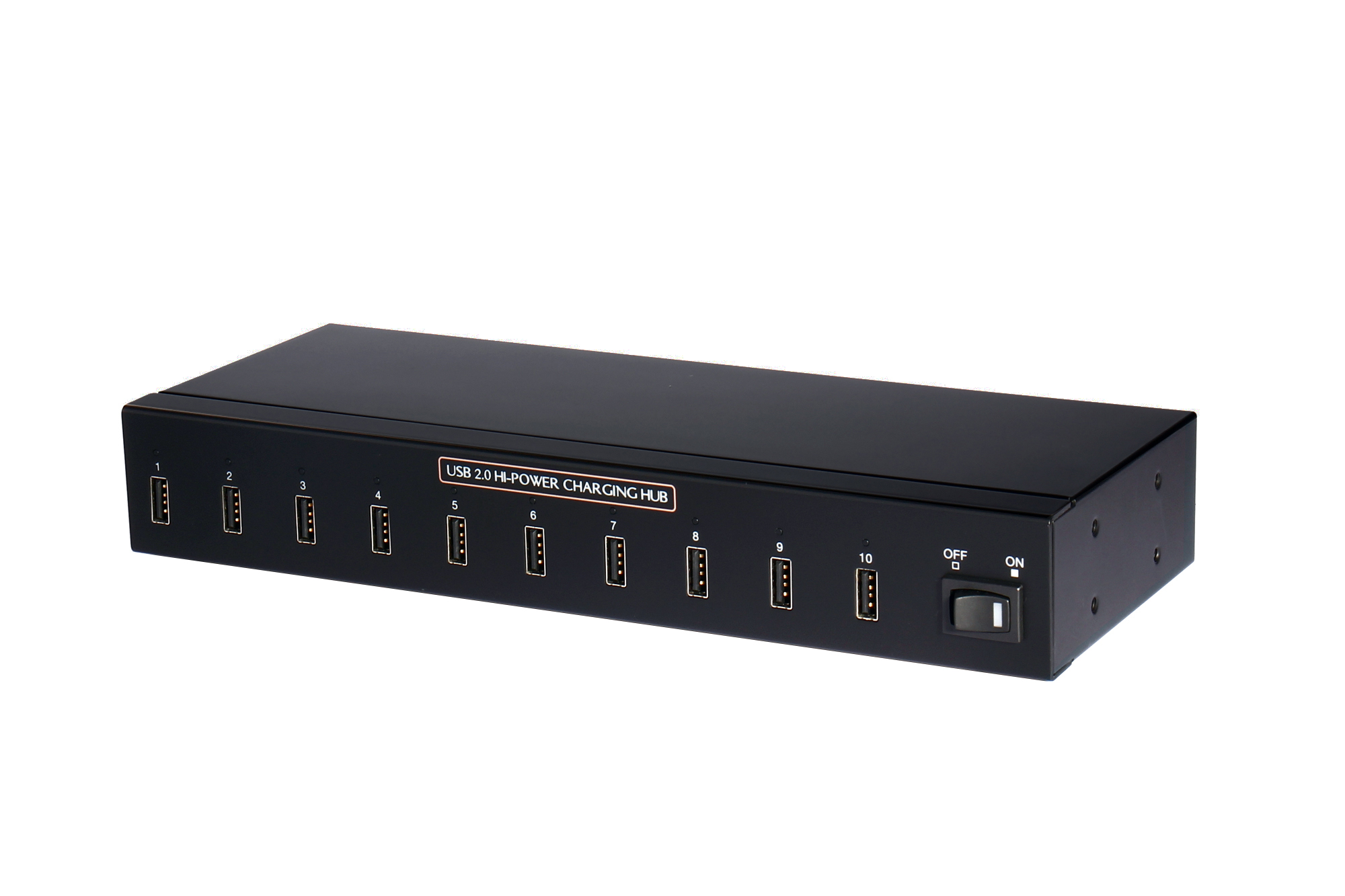

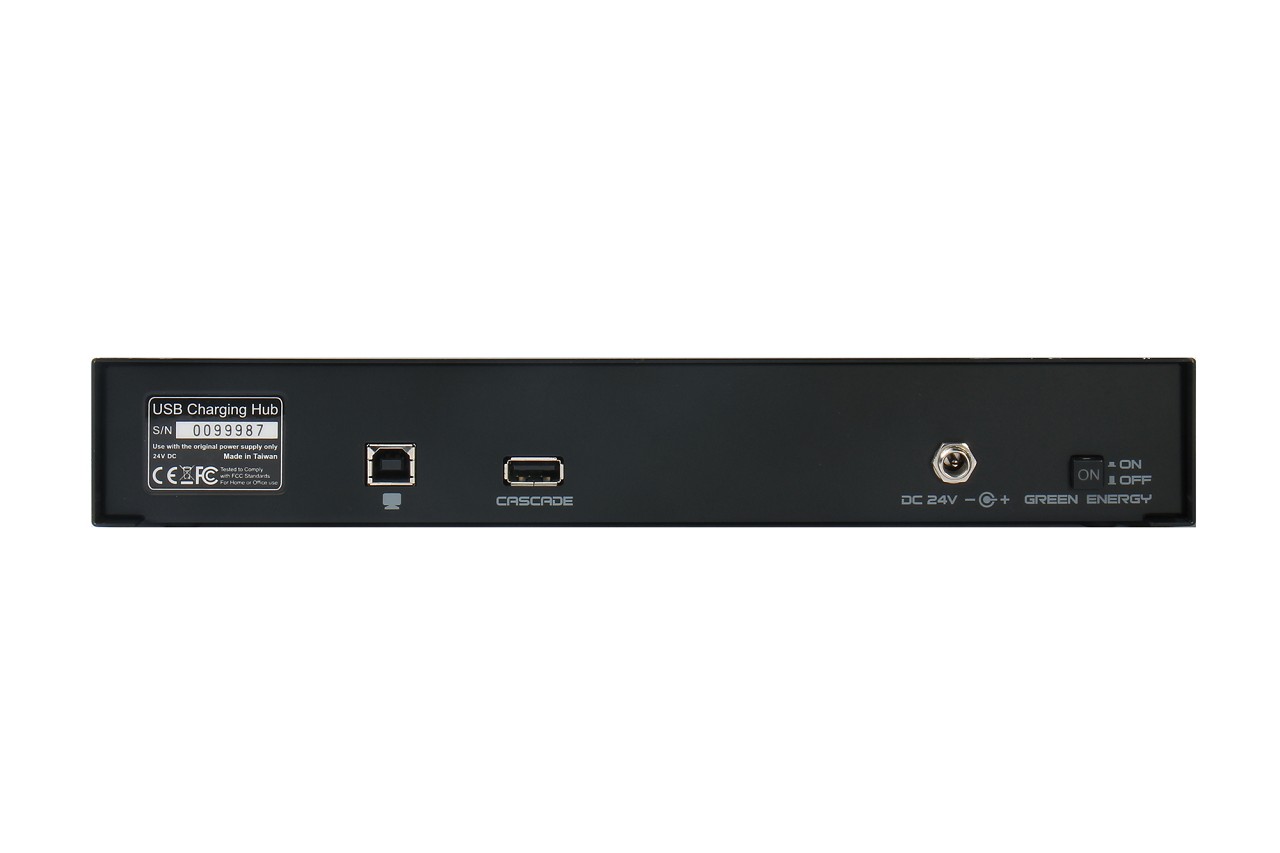

10-Port USB 2.0 Hi-Power Charging Hub

10-Port USB 2.0 Hi-Power Charging Hub

USB-1024BCN

The 10-Port USB 2.0 Charging Hub is a solution for quick charging or sync up to 10 iPads, iPhones, iPods and USB charging devices operating simultaneously; this is a perfect tool to effectively perform Sync/Charge mode switching. Also is ideal for large capacity USB station in-house that enables charging and syncing at a time. Places such as school’s classroom, businesses conference or meeting in organizations.
  •  Feature
  •  Specification
  •  Download
  • Compliant with USB Battery Charging Spec 1.2; Support the iOS, Android devices.
  • Enables to provide up to 1.5A (Sync mode) or 2.4A (Charge mode) output current on each port.
  • Enables Sync/Charge mode switching upon manually connecting or disconnecting host port.
  • Enables Green Energy function automatically shutdown the hub when all devices are fully charged at Charge mode.
  • Supports Over-Current Protection (OCP) and Short-Circuit Protection (SCP) on each port
  • Over-Temperature Protection (OTP): If the unit temperature exceeds the protection threshold, all output current is shut off immediately and all 10 port LEDs blink green.
  • Supports ±15 kV (air discharge), ±8 kV (contact discharge) ESD protection on each port.
  • Supports 40 A (5/50 ns) surge protection and 250 W peak pulse power (8/20 us) transient protection on each port.
